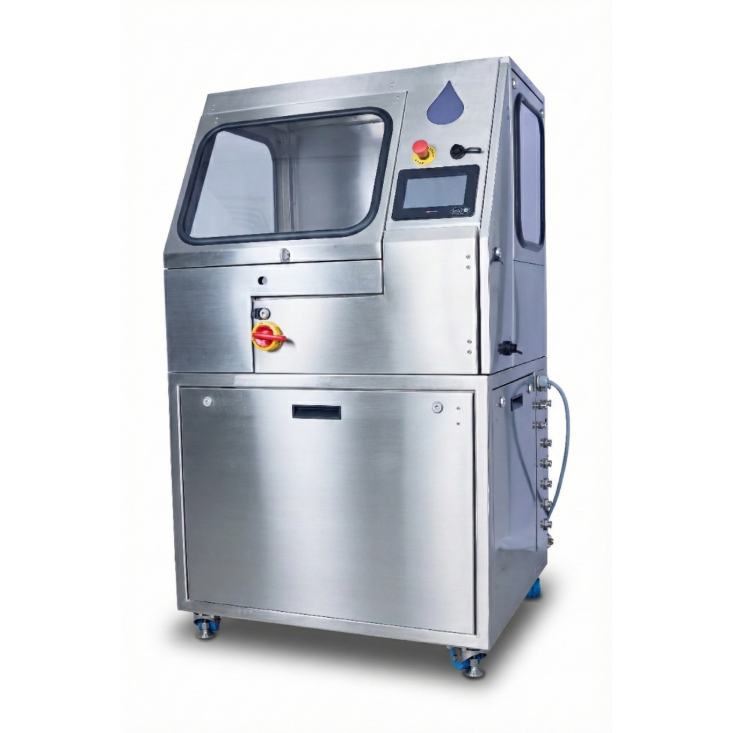

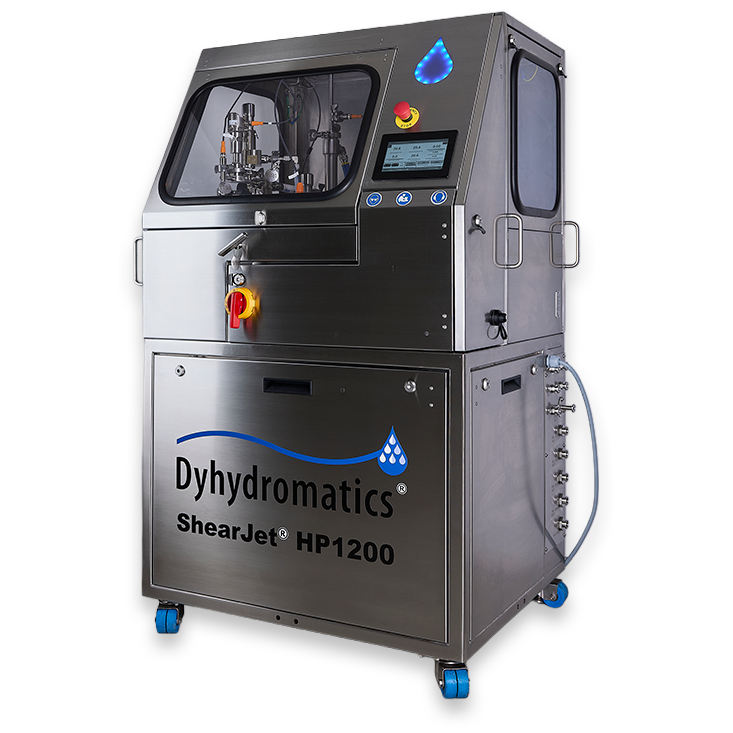

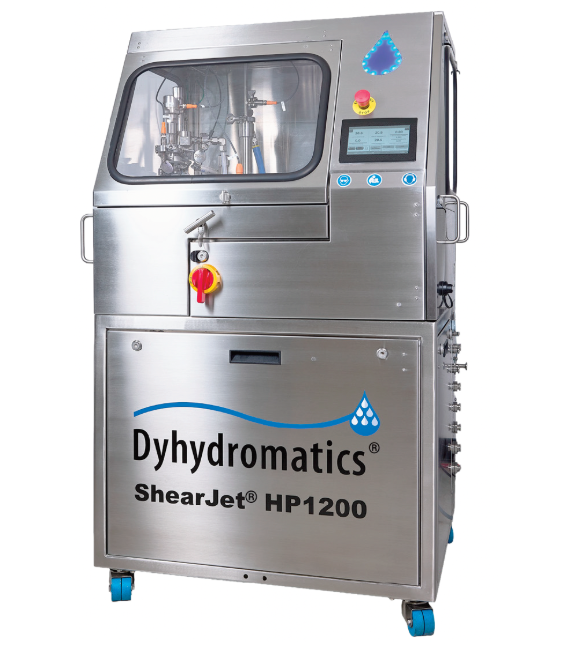

HP 1200 V2 SeriesInformation
Less Maintenance and Higher Reliability
The ShearJet® HP1200 V2 Series electric-hydraulic processor runs sample sizes of 1L (options dependent) to 200L and up in distinct passes or continuous runs. Because the HP1200 V2 series is equipped with two multiplier pumps, it achieves near-continous flow, subjecting formulations to identical processing conditions from start to finish. The HP1200 V2 is capable of operating from seconds for smaller samples or continuous for very large batches.
HP 1200 V2 SeriesNon-Pharma
- Standard Version
- 2 RTDs
- Touchscreen HMI with advanced features
- Food Grade Feed Pump
- Inline pressure transducer
- Diamond Reaction Chamber® Modules
- Ceramic process plunger
- Tube and Shell Heat Exchanger
- FAT/SAT
- Premium Version
- 3 RTDs
- Touchscreen HMI with advanced features
- Food Grade Feed Pump
- Inline pressure Transducer
- Diamond Reaction Chamber® Modules
- CIP bypass
- Ceramic process plunger
- Tube and Shell Heat Exchanger
- Temp control
- FAT/ SAT
HP 1200 V2 SeriesPharma
All Pharma ShearJet® HP1200 V2 Series Processors are electropolished and passivated.
- Standard Version
- Integrated sanitary feed pump
- Ceramic Plunger
- 2 RTDs
- Flush Diaphragm inline pressure transducer
- Diamond Reaction Chamber® Modules
- Product heat exchanger tube and shell
- Touchscreen HMI with advanced features
- FAT/SAT
- Premium Version
- Integrated sanitary feed pump
- Ceramic Plunger
- 3 RTDs
- Flush Diaphragm inline pressure transducer
- Diamond Reaction Chamber® Modules
- Product heat exchanger tube and shell drainable
- Touchscreen HMI with advanced features
- Data Recorder enabling 21 CFR Part 11 compliance
- CIP
- FAT/SAT
- IQOQ
HP 1200 V2 SeriesSpecifications
| Shear Jet | HP1200-10 | HP1200-10PH | HP1200-20 | HP1200-20PH | HP1200-30 | HP1200-30PH |
|---|---|---|---|---|---|---|
| Sample size mL | 1L | 1L | 1L | 1L | 1L | 1L |
| Pressure kpsi | 10 | 10 | 20 | 20 | 30 | 30 |
| Pressure bar | 690 | 690 | 1379 | 1379 | 2068 | 2068 |
| Flow rate | 3.0-3.6 L/min | 3.0-3.6 L/min | 1.5-1.8 L/min | 1.5-1.8 L/min | 1.0-1.2 L/min | 1.0-1.2 L/min |
